Welcome to Jaalee Support Center

  •
  • Calculate the Beacon service life here(Broadcast interval:1s)


    Battery Type:
    Operating voltage:
    uA
    Service life: ≈
    Month(s)

     Download:


    You can download the important files of Jaalee Beacon and Sticker you need provided for the developer, including the instruction of API, SDK and so on.


    The Services We Provide


    The Services of Appearance Customization

    At present, there are two main types appearance of our products: square one and round one. The square one has a size of 40 mm(Width) * 40 mm (Width)* 13.6 mm(thickness) and the round one has a size of 28 mm(diameter) * 8 mm(thickness).

    We can provide the logo printing service so that they only need to send us their logo to us. Customers can also customize their own housing they like.


    The Services of Firmware Customization

    Firmware customization service refers that our firmware can be modified in a certain degree on the basis of the current one.

    We know that the firmware services we provide can not meet the requirements of all customers. If you have your own customized requirements, you can tell us, we will try our best to meet your needs.

    We can provide the logo printing service so that they only need to send us their logo to us. Customers can also customize their own housing they like.


    The Services of Beacon Configuration

    It’s not easy to configure thousands Beacons for different parameters. Beacon configuration services(including Beacon activation and parameter configuration) mainly refers that Beacons can be immediately put into use without activation and configuration when the customers get them.

    We can configure the parameters of each Beacon as customers need. And mark parameters on external of each Beacon so that customers can install and use immediately.


    The Services of Complete Technical Support

    For the developing of Beacon, developers are free, not restricted by us. Because we can provide complete firmware interface for developers and tell them how to use.

    And we also provide the SDK for developers, which can speed up the development. If you have any technical problems, send an email to dev@jaalee.com directly. Or write down your questions in the community interface, we will reply you within two working days..


    Technical details


    How To Start To Use It

    Step 1: Download the latest version eBeacon App(version 1.6.0) from Apple App store.

    Step 2:Open the Bluetooth and eBeacon App.

    Step 3:Tap the Beacon for 3-5 times on hard surface, and the Beacon will be connectable when you hear a buzz.

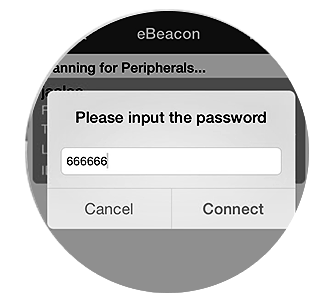

    Step 4:Click the Beacon in the eBeacon App which you want to configure and enter the password to connect it.

    Step 5:Now, you can configure and use Jaalee Beacon normally.


    What Can Beacons Do?

    If you have your own shop, you can push notifications to the equipment which has entered the signal area at once, such as sales promotion, new product information, discount coupon, etc. You will know if he/she is a member when the customer enter the store. If not, information will be sent forwardly to invite him to be a member.

    When customers are close to a commodity, Beacon will be a good "guide", introducing the full details of the commodity. If you have your own car, wasting time looking for a parking space in a parking lot when you are in a mall or a hotel and you are really be bored to it. Jaalee Beacon can perfectly solve this problem for you.

    If the parking lot is equipped with Jaalee Beacon device, you will receive the map of the parking lot as soon as you enter the signal area. What’s even more exciting? It’s clear to know the empty parking space at a glance on the map. And as long as you follow the route on the map, your car will be parked safely and quickly.

    Jaalee Beacon provides perfect solutions for indoor navigation and notification pushing. Jaalee Beacon can also be used in hotels and resorts to facilitate users’ check-in and check-out as well as to show their facilities, environment and some thing else to the tourists. It can be used for conferences to broadcast information to the participants or used in Catering Services to push virtual menu, including the number of calories, food sources, ingredients and what kind of wine pairing makes the food taste better.

    While in an iBeacon signal area, the app provides additional location services for continuous proximity updates related to the phone's distance from the iBeacon.


    Features of JAALEE Beacon

    - Modes can be switched freely.

    - Built-in Beacon firmware. Compatible with BLE.

    - Built-in a coin battery (type: CR2450).

    - Accurate digital RSSI. Excellent link budget (up to 97dB).

    - Enable remote application, AES security coprocessor.

    - High performance and low power, an available time for 5 years or more.

    - Unique power management pattern, 16 years long standby time.

    - Ultra wide range transmission power: 4dB— -40dB.

    - Stable performance and controllable state.

    - All hardware interface completely open. Developers do not need to rely on the SDK for development. The requirement of hardware interface can be customized (achieved a certain number).

    - All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.). Encrypted parameter, a password is needed when access to configure.

    - Provide IOS and Android SDK.

    - Apple iBeacon certified.

    - Support “SLEEP” and “WAKE-UP”.


    Hardware of JAALEE Beacon

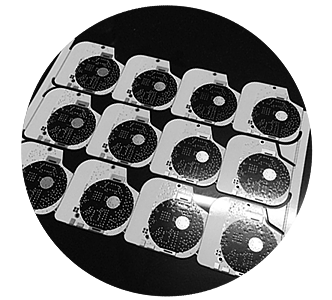

    Technically speaking, JAALEE Beacon is a super small computer which has a powerful 32-bit ARM® Cortex M0 CPU with 256kB flash memory.

    What’s most important – the 2.4 GHz Bluetooth 4.0 Smart bidirectional radio(also known as BLE). Don't confuse Bluetooth Smart with the first version of Bluetooth (the one that requires pairing and never actually works). BLE 4.0 is a completely new, redesigned standard one developed by Nokia™. It is now implemented in all smart phones like Apple iPhone™ 4S or Samsung™ Galaxy S III, and other smart devices like Google Glass™, Fitbit trackers or smart-watches.

    It's called low-energy because it really is. Jaalee Beacon BLE devices can run up to several years with a single coin battery depending on the signal strength and broadcast rate they broadcast information around.


    Broadcasting Proximity iBeacon ID

    Smart phone can pick up signal from more than one beacon at the same time. If there are three or more beacons within range, your phone can calculate the distance to each beacon and use this data to estimate its relative location. This technique is something that sailors had used for ages. They were navigating thanks to unique fixed markers like lighthouses or stars. JAALEE Beacons can be uniquely identified as well since each beacon broadcasts its own ID. JAALEE Proximity Beacon ID including proximity UUID (16 bytes) + major number (2 bytes) + minor number (2 bytes). All Beacon parameters can be configured. When use JAALEE Beacon, the different IDs can be marked on different positions. So we can distinguish different locations.


    Context and Micro-location from the Cloud

    Additionally the smart phone is continuously monitoring the strength of the signal (or RSSI), which is compared to three predefined ranges that divide the area around a beacon into three zones - far, near and immediate.

    The application is also notified which zone the phone is currently in. Whenever the user enters a zone, their context may change, so the OS notifies the application about this event as well.


    Monitoring Distance and Triggering Events

    Additionally the smart phone is continuously monitoring the strength of the signal (or RSSI), which is compared to three predefined ranges that divide the area around a beacon into three zones - far, near and immediate.

    The application is also notified which zone the phone is currently in. Whenever the user enters a zone, their context may change, so the OS notifies the application about this event as well.

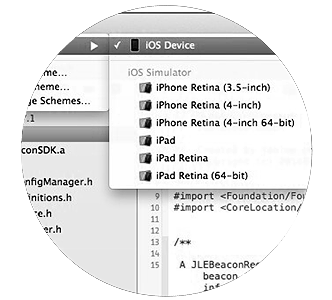

    Compile Sample Code

    Compile and run sample code to install and launch the app on your phone connect with a cable and select your phone in the active scheme drop down menu.

    Then click the "Run" button.The Example app should launch on your phone. It allows you to configure your beacons as well as featuring demos of their capabilities.
